SAMCLA INFINITE

IRRIGATION TELEMANAGENT PRODUCT

+60.000

devices

Controllers, switches, sensors and network devices
Telemanagement software

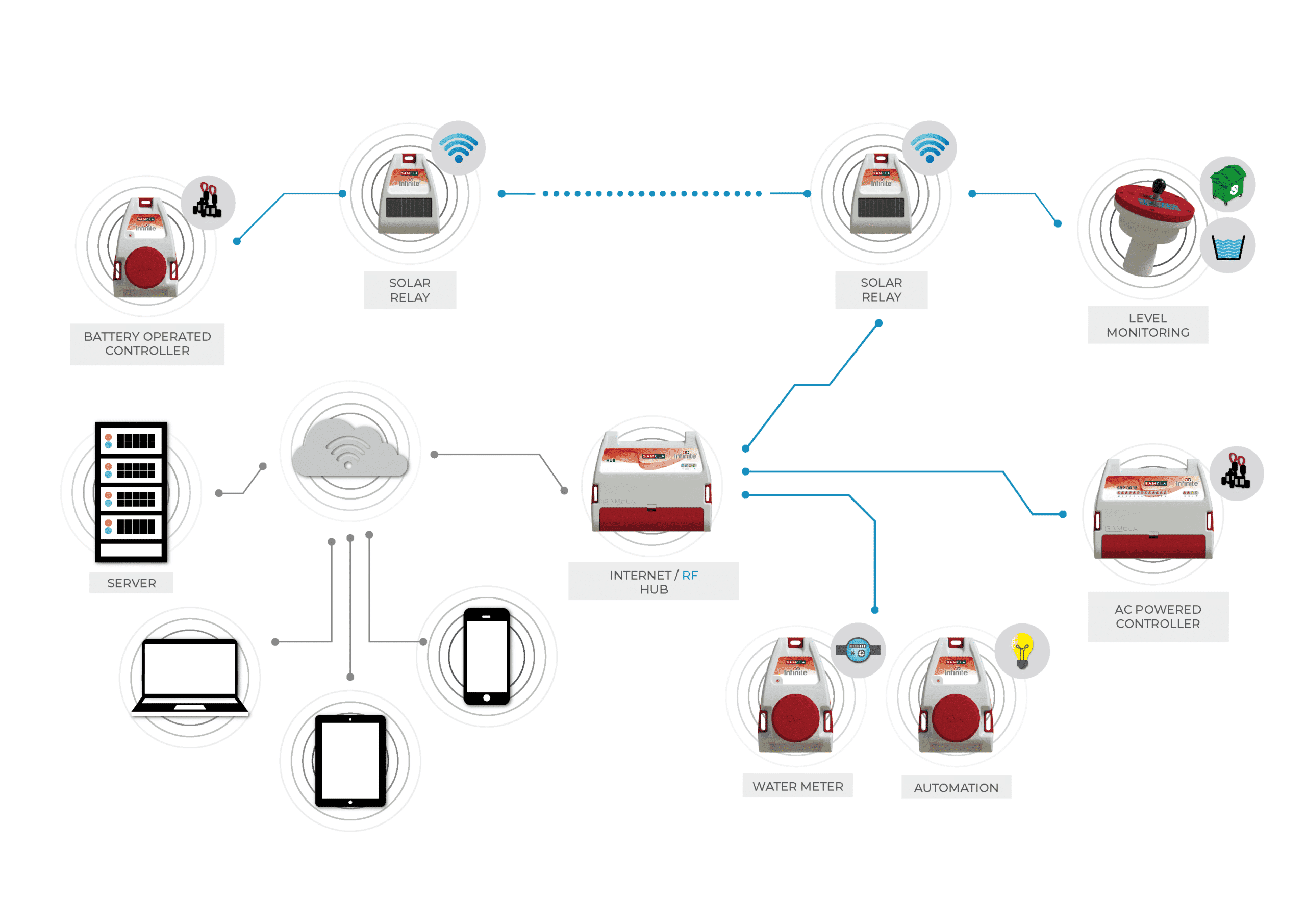

SAMCLA communications architecture

AC POWERED & BATTERY OPERATED DEVICES

RF equipment 100% operational even if the internet connection is disrupted. Over 2 years battery lifetime.

REAL-TIME OPERATION

Immediate and secure communications, with a permanent connection between HUB and Server. Unlimited daily connections.

LONG DISTANCE RANGE

Unlimited devices per HUB. Up to 6 chained relays. 8Km range in open area.

DEVICES

Network

HUB’s

230VAC power supply included

HUB
Wi-Fi / Ethernet / 3G, 4G… connection
Bluetooth connection for local mode operation
Unlimited controllers and sensors per HUB
HUB LITE
Wi-Fi connection
Bluetooth connection for local mode operation
Up to 26 devices per HUB

RELAY’s

Built-in solar panel operated
No maintenance

REP
Up to 6 RF relays between the HUB and any SAMCLA Infinite device: RF range up to 8km.
- Unlimited number of SAMCLA terminal devices per REP.
- Unlimited number of teams per HUB. Possibility of remote equipment connectivity at distances greater than 8Km.
- Full recharging range: exhausted batteries can be recharged by the solar panel.
- Ultra low sleep mode power consumption.

Devices

CONTROLLERS

SOLAR PANEL OPERATED CONTROLLERS

Built-in solar panel
9VDC Latch solenoids

SBP 01 01 S (station)

Applications

BATTERY OPERATED CONTROLLERS

2 batteries x 1’5V AA
9VDC Latch solenoids

SBP 01 01 (1 station)
SBP 01 02 (2 stations)
SBP 01 04 (4 stations)
SBP 01 06 (6 stations)

Applications

BATTERY OPERATED CONTROLLERS WITH WATER METER

2 batteries x 1’5V AA
9VDC Latch solenoids
Water meter

SBP 02 01 L(1 station)
SBP 02 02 L (2 stations)
SBP 02 04 L (4 stations)

Applications

AC POWERED CONTROLLERS

24VAC solenoids
Master valve / Pump
Power supply included

SBP 00 04 (4 stations)
SBP 00 08 (8 stations)
SBP 00 12 (12 stations)

Applications

AC POWERED CONTROLLERS WITH WATER METER

24VAC solenoids
Master valve / Pump
Water meter
Power supply included

SBP 02 04 (4 stations)
SBP 02 10 (10 stations)

Applications

Devices

SENSORS

HUMIDITY SENSORS

Watermark-Irrometer soil moisture probe included
Solar panel or battery (2 x 1’5V AA) operated

SBH 01 00 S (Solar)
SBH 01 00 B (Battery)

Applications

GENERAL PURPOSE SENSORS

Any ON/OFF or analog (4-20mA) sensor connection allowed
Solar panel or battery (2 x 1’5V AA) operated

SBS 01 00 S (Solar)
SBS 01 00 B (Battery)

Applications

LEVEL MONITORING SENSORS

Battery operated (2 x 1’5V AA)
Ultra low sleep mode power consumption
Configurable reading time period

SBD

Applications

MAINTENANCE MONITORING

NFC technology
No batteries or maintenance
Water resistant
Identification and digital control of maintenance targets

TAG

More information

DATA SHEETS (Customer access)

DATA SHEETS (Access request)

SOFTWARE FOR DEVICES TELEMANAGEMENT

WAPP INFINITE HUB APP INFINITE BLE APP

Multi-service WEB platform
It allows different verticals telemanagement, owned by SAMCLA or by third parties. Irrigation controllers telemanagement, water meters, waste containers or tanks, digitization urban elements maintenance (playgrounds, irrigation elements, fountains, hydrants…), trees and vegetation control, etc.
Multi-user WEB platform
It allows all types of users to be registered and categorized based on their attributions and responsibilities within each customer account. Permissions and hierarchies can be created, defining exactly how far each profile should be able to manage.
SMART CITY compliance
Allows real-time data sharing and integration with other third-party platforms, with SMART CITY compliance

APP to work with the INFINITE HUB architecture
Allows field equipment to be managed either through the RF network (INFINITE HUB architecture) or directly by Bluetooth with a smartphone
Management and installation and maintenance tool
With this APP, both the daily management tasks of the equipment, as well as those related to their installation or maintenance, can be carried out. It therefore eliminates the use of dedicated consoles.
User friendy and safe
There is no need to use WEB software (WAPP) to perform the most elementary tasks. With a mobile phone and the INFINITE HUB APP, it is possible to perform most of the functions that we usually perform from a PC, quickly and safely.
Binding data
Modifications and/or actions carried out from the INFINITE HUB APP are uploaded to the server, updated and therefore binding. Both the WEB application and the INFINITE HUB APP always act as a Front End.

APP to work with the INFINITE BLE architecture
Allows you to manage field equipment directly via Bluetooth with your smartphone
Management and maintenance tool
With this APP, you can perform the tasks of daily management of the equipment or its maintenance, as long as there is no need to review aspects of the RF network (it does not work with the INFINITE HUB architecture). It therefore eliminates the use of dedicated consoles.
User friendy and safe
With a mobile phone and the INFINITE BLE APP, it is possible to do some of the activation irrigation options, checking equipment, etc., which we usually control from a PC, in a fast and safe way.
